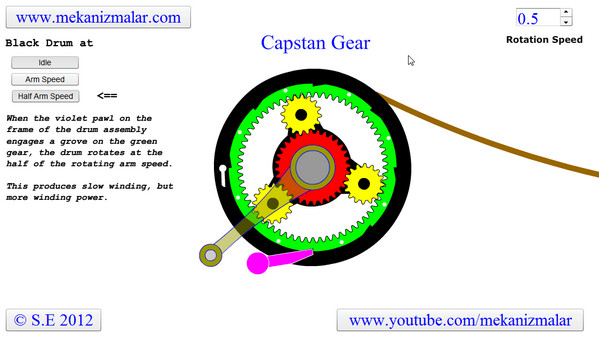

Capstan Gear


Capstan Gear



minton
11 May 2013

it's so fantastic

Jesse
20 Jun 2013

When ever I view your webpage and it's animations, the axiom "standing on the shoulder of giants" goes through my mind over and over.

Thanks for these imaginative, mind-stretching exercises

mahdi
15 Mar 2014

Hello.would you please help me by sending this Flash Animation of a Camshaft? Thank,s a lot

hitesh
09 Sep 2014

Your animations helps me to understand the concept practically, and it's also make me curious to learn. Thank you for providing these animations.

Rich
05 Nov 2015

Wouldn't the drum be rotating at a 3:1 ratio, not a 2:1?
The ring gear has 64 teeth and the sun gear has 32 so 32 / (64+32) = 1/3. Excellent animations though.

Mekanizmalar
05 Nov 2015

Dear Rich, Thank you for your visit to my web page and excellent correction you have made. Yes, every three rotations of the arm the drum makes only one rotation.

Caracoid
12 Feb 2017

Love it! But as a novice to these devices, it takes a long time to figure out what their purpose is. A brief explanation at the beginning would be great. After watching this a few times, I assume that this device permits cranking at two different speed
