Here is a LINK to documentation download page.

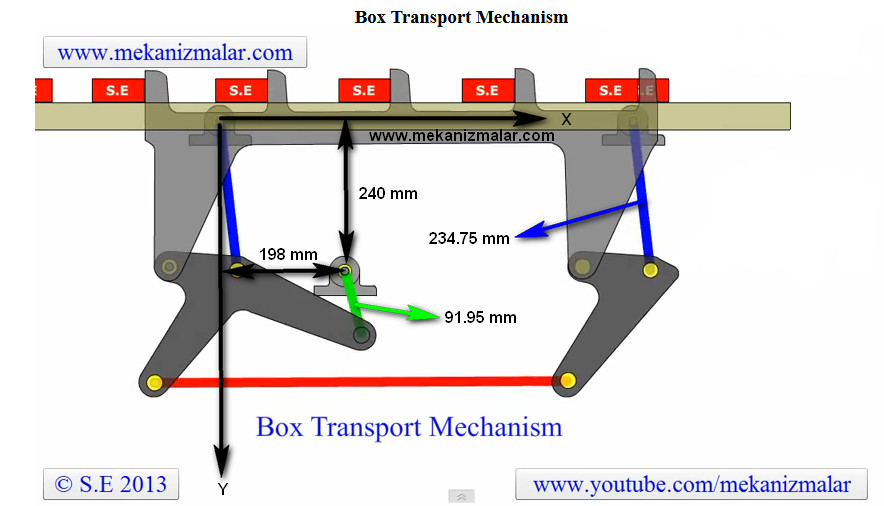

Location of Crank

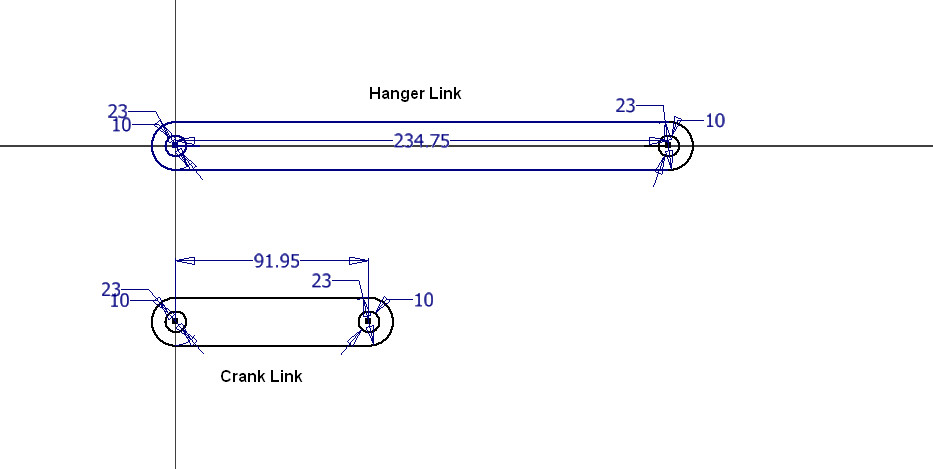

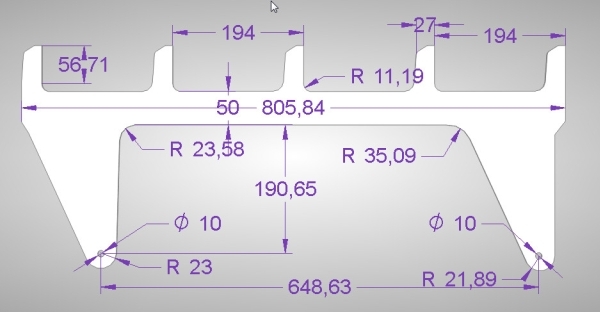

Part 1



Part 2

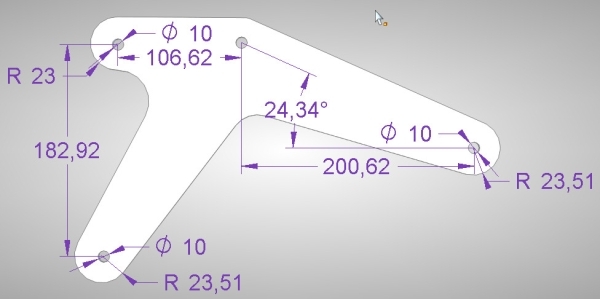

Part 3



Part 4



Use the dimentions given above.

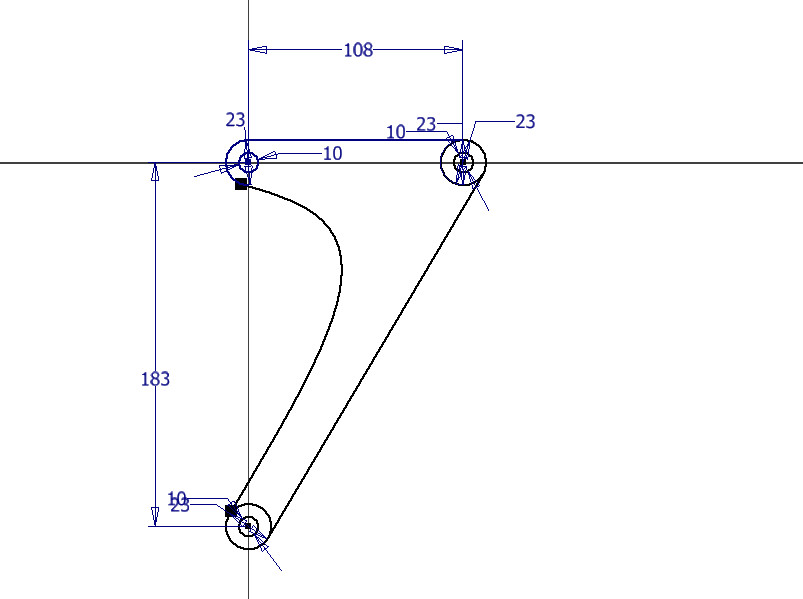

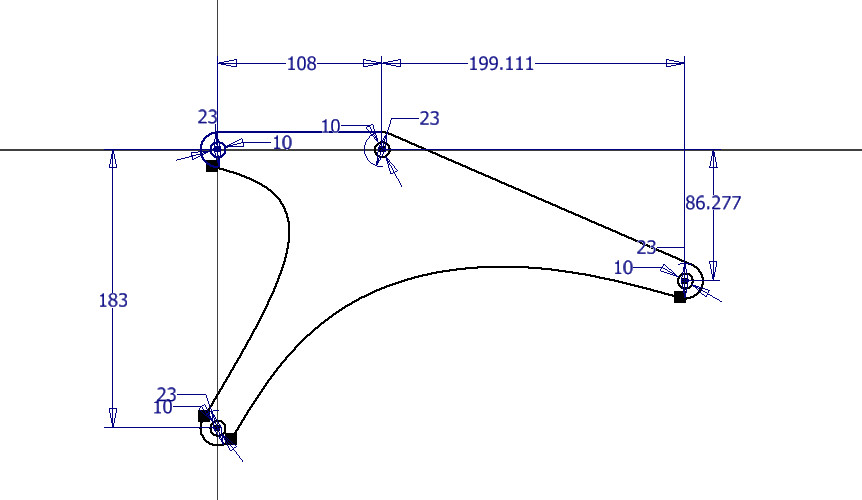

Following two figures are deprecated. Please do not use them. I left them here just for reference.


Part 3



Admin
14 Feb 2013

I think fallowing links will be helpful.
http://www.mekanizmalar.com/material_feed_mechanism_pictures.html
http://www.mekanizmalar.com/raoul_el_dib.html

Admin
18 Feb 2013

It is well known mechanism. Please look at the links at the second comment to find further info.

Ankit
18 Feb 2013

Is this mechanism used in modern or recent times?
or is this outdated?
If this is still used,then where?

Dhileepan.s
19 Feb 2013

I have select this mechanism as my mini project. There is lot of confusions while doing design . . . How did you calculate the distance between the pivots. . . Would you pls explain me. . . . . . . .

V D N V SESHU KUMAR
21 Feb 2013

It is an Excellent Mechanism Animation

Mekanizmalar
04 Apr 2013

Rotating hinge and left hinge linkage system forms a four-bar mechanism.

Thouf
15 Apr 2013

What is the major mehanism used for this like double crank or any other

Joje
20 Feb 2014

Tnx 4 your information

Naveen
07 Apr 2014

which motor did u use for this ? i'm doing this as my mini project..pls send me the abstract and a full report about this project...pls it would be helpful if u send it soon...

rohit
04 Aug 2014

sir this is a really superb project, but i wanted to know that, is this project less costlier than belt conveyor or roller conveyor.?if it is than how..??

Amar
27 Aug 2014

i am also making a mini project on box transport mechanism so please send me some soft copy or any pdf material related to this topic as soon as possible. plzzzzzz

Siddharth
21 Oct 2014

A great mechanism!
I would like to 3D print it and program it using software. I would be glad if you send me some .pdfs of the mechanism having theory for the mechanism.
Thank you.

knight
01 Nov 2014

How to calculate acceralation all point in this mechanism

awadhesh
12 Nov 2014

please upload the advantages over conveyor system

jamnes Benjamin
08 Dec 2014

I really appreciate this work. It is simple to design and easy to mai

rishi
30 Dec 2014

how much cost required in this machine? pls give me the pdf and other design informatin... pls

suna
21 Jan 2015

I have selected this topic as my mini project. so kindly provide me the details of the mechanism used and more information regarding this project such as materials used, motor ratings etc.

Tamil
11 Feb 2015

I want box shifting mechanism PDF for my mini project pls help me.

jyotirajsinh
12 Feb 2015

I want box shifting mechanism more information pdf or material plese help my mini project.

gugan
24 Feb 2015

good

Govindarajulu
26 Feb 2015

Thank You, Box Moving Mechanism Works. I need the timing calculation for this project as soon as possible.

syedinzi
10 Apr 2015

here is the report for box transport mechanism, maybe not 100 % perfect but it is here.
click on Download

KK
16 Feb 2016

This mechanism is pretty cool for mini projects but the download link provided doesn't work.

Mekanizmalar
16 Feb 2016

Hi KK, I tested and it is working. Use different browser or enable javascript.
